Air heater Master BV 290E

Master BV 290
Efficiency [kW]: 81
Air flow [m3/h]: 3300
Fuel consumption [kg/h]: 6,8
Diameter of the chimney connection [mm]: 150
Net weight [kg]: 103
10,800.00 zł
Tax included
Quantity

Master BV 290
MASTER
View all products of MASTER

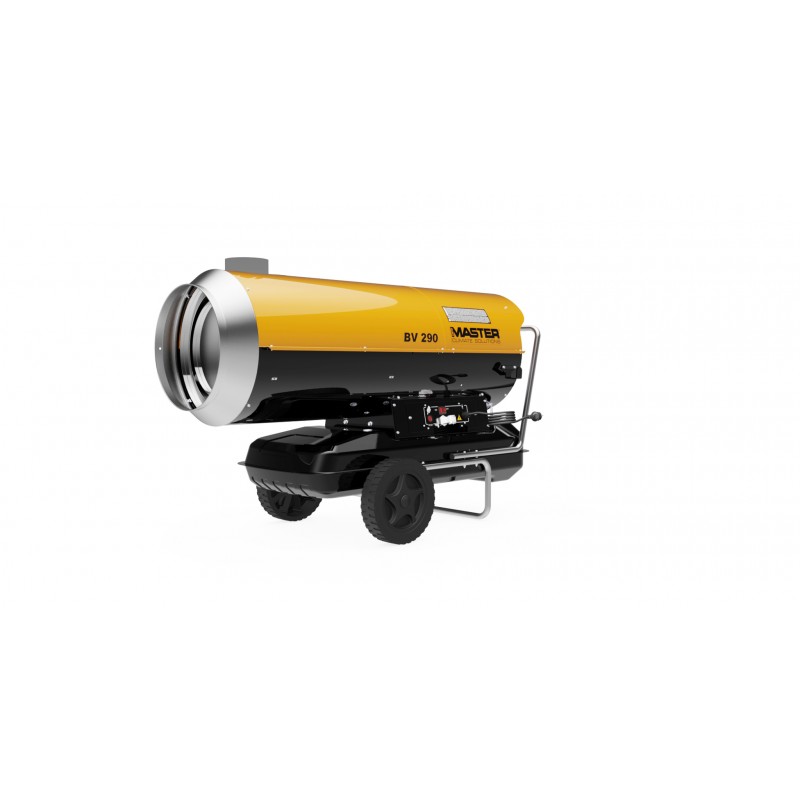

Oil heater with flue MASTER BV 290 E is a portable, professional, fully automatic oil heater. The combustion chamber is made of stainless steel. Heater case is isolated, so that does not heat up during use. The heaters are equipped with wheels, coasters and handrails to facilitate their transport. All devices have a built-in oil tank. It is possible to connect the room thermostat. Power for the fan and automation - 230V.  Heaters are ideal for heating production halls, warehouses, livestock buildings, construction in progress, wash stations, diagnostic and wulkanizacjach, tents and workshops. Exchangers heaters have combustion chamber and a fireplace that allows smoke outlet on the outside, so warm air is put into the room is clean.



Advantages heater:


  •      Electronic flame control
  •      Overheat thermostat
  •      Ability to connect room thermostat
  •      Combustion chamber is made of stainless steel
  •      Durable exterior finish
  •      Standard oil tank
  •      Set of of wheels in the standard
  •      Strong and durable construction
  •      Housing does not heat up
  •      Easy to use and maintain
  •      High airflow


Data sheet

Fuel type
olej napędowy / olej opałowy
Efficiency [kW]
85
Efficiency [Btu/h]
29000
Efficiency [Kcal/h]
73100
Air flow [m<sup>3</sup>/h]
3300
Fuel consumption [kg/h]
8,1
Rated current [A]
4,6
Power [V/Hz]
230/50
Tank capacity [l]
105
Thermostat control
możliwa - TH 5
Diameter of the chimney connection [mm]
150
Net weight [kg]
103
Gross weight [kg]
126
Blast opening [mm]
400
Czas pracy na pełnym zbiorniku [h]
13
Ochrona
IP 44

Specific References

Download

Schemat nagrzewnicy BV 290 E

Download (2.28MB)

Schemat BV 290 110V model 2012

Download (2.01MB)

Schemat BV 290 DV

Download (2.15MB)

Schemat BV 290 model 2010

Download (533.77KB)

Schemat BV 290 model 2011

Download (643.28KB)

Schemat BV 290 model 2012

Download (2.04MB)

Schemat BV 290 model 2013

Download (2.1MB)

Schemat BV 290 UK 110V

Download (2.27MB)
