Suspended heater BVS 290 E

Efficiency [kW]: 81
Air flow [m3/h]: 3300
Fuel consumption [kg/h]: 6,80
Net weight [kg]: 80
10,790.00 zł
Tax included
Quantity

MASTER
View all products of MASTER

These are direct or indirect suspended heaters with high quality features. They are designed for areas with high air flow requirements like greenhouses, warehouses or animal housing.

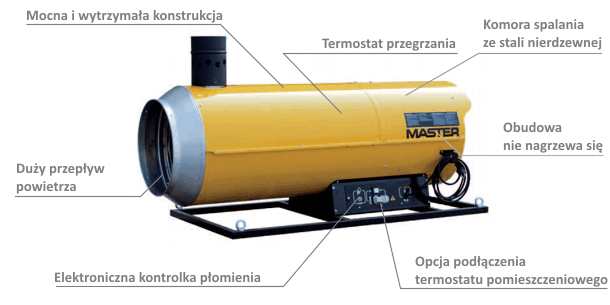

Model description:

  • Designed for suspension including frame for lifting
  • External fuel tank according to the needs
  • Lighter in weight thanks to the lack of fuel tank
  • Possible connection to an optional room thermostat
  • Possible connection to a flexible tube
  • Possibility of flue gas exhaust
  • High air flow
  • Overheat and post-ventilation thermostat
  • Transparent external suction filter
  • Two oil filters: oil pump filter and suction filter
  • Electronic flame control with photocell
  • Heat exchanger
  • Stainless steel combustion chamber
  • Easy maintenance with external pump
  • Strong and long lasting construction
  • 2 pieces of fuel line (supply and return line) included

Data sheet

Fuel type
olej napędowy / olej opałowy
Efficiency [kW]
81
Efficiency [Btu/h]
276372
Efficiency [Kcal/h]
70000
Air flow [m<sup>3</sup>/h]
3300
Fuel consumption [kg/h]
6,80
Power [V/Hz]
220-240/50
Thermostat control
możliwa - TH 5
Diameter of the chimney connection [mm]
150
Blast temperature [°C]
400
Net weight [kg]
87
Dimensions - L. X width. X height. [mm]
1600x750x800

Specific References

Download

Schemat nagrzewnicy BVS 290

Download (1.83MB)

Schemat nagrzewnicy BVS 290 Mode

Download (423.04KB)
