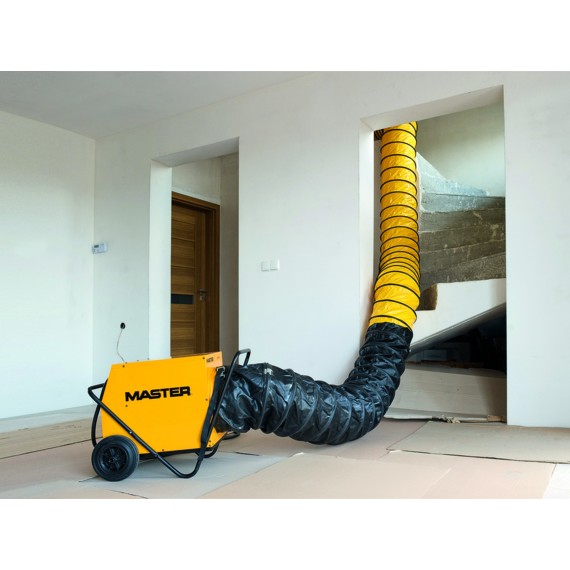

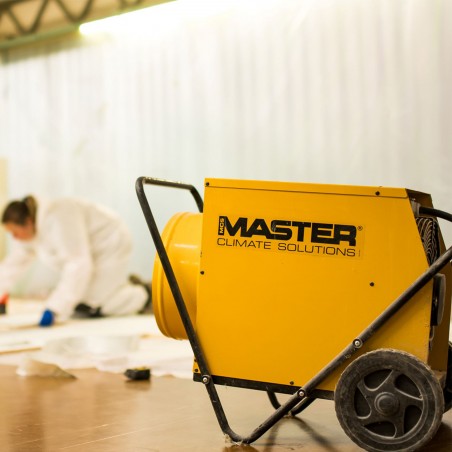

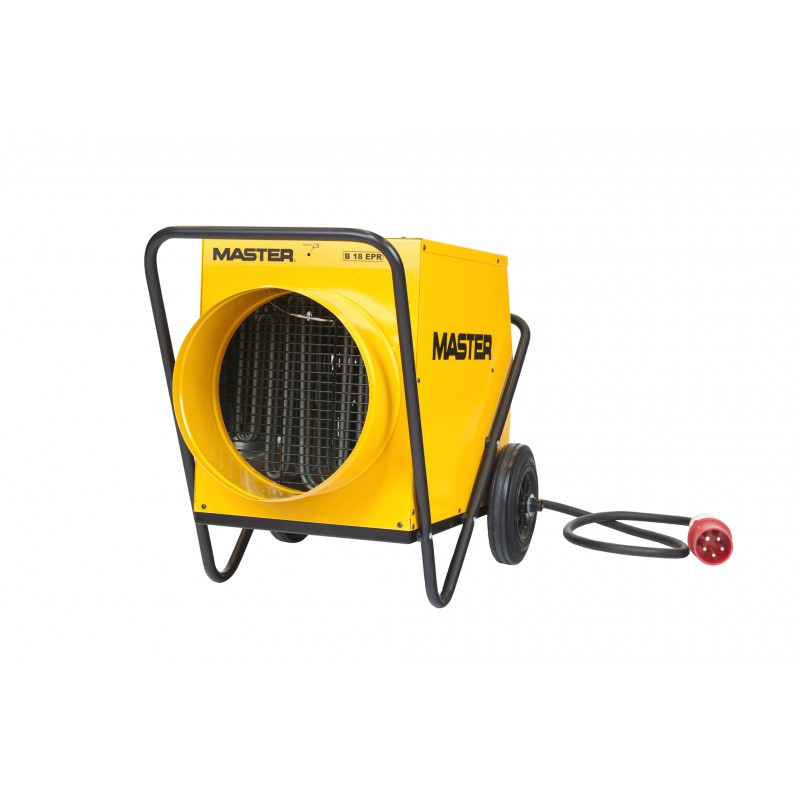

MASTER B 18 EPR electric heater

MASTER B 18EPR

Efficiency [kW]: 9,0 / 18,0
Air flow [m3/h]: 1700
Rated current [A]: 3 x 26
Power [V/Hz]: 400/50 - wyposażona w 1,7 m przewód zasil. 5x4mm2
Net weight [kg]: 27

3,400.00 zł
Tax included
Quantity

MASTER B 18EPR
MASTER
View all products of MASTER

Model description

  • Possible connection to a flexible tube
  • Possible connection to an optional room thermostat
  • Easy to move thanks to big wheels
  • Supply cord as a standard (for EPR series)
  • Grip for easy transport (for B 30EPR)
  • No oxygen consumption
  • No fumes, no odours, no humidity
  • Summer-Winter switch for ventilation only
  • Low noise
  • Manual reset
  • Motor with thermal protection
  • Stainless steel heating elements
  • Overheat thermostat
  • Adjustable heat
  • Strong and long lasting steel construction

Accesories

Room thermostat TH 5 with cable
3 m - 4150.105, 10 m - 4161.967
range: 0-36°C, accuracy: ± 1,5°C

Flexible 7,6m coated tube
Ø 305 mm - 4515.553

First 2m (black part) are made of a material resistant to 150°C.
Hose binder included.

Extension cord
5 m - 4511.033, 10 m - 4511.034




Data sheet

Efficiency [kW]
9,0 / 18,0
Efficiency [Btu/h]
30700 - 61400
Efficiency [Kcal/h]
7740 - 15480
Air flow [m<sup>3</sup>/h]
1700
Rated current [A]
3 x 26
Power [V/Hz]
400/50 - wyposażona w 1,7 m przewód zasil. 5x4mm2
Switch position 1
OFF
Switch position 2
wentylator
Switch position 3
9,0kW
Switch position 4
18,0kW
Thermostat control
możliwa - TH-5
Net weight [kg]
27
Dimensions - L. X width. X height. [mm]
700x490x530
Ochrona
IP 24

Specific References

Download

Schemat nagrzewnicy B 18 EPR

Download (254.69KB)

Instrukcja obsługi B 18 EPR

Download (767.97KB)
