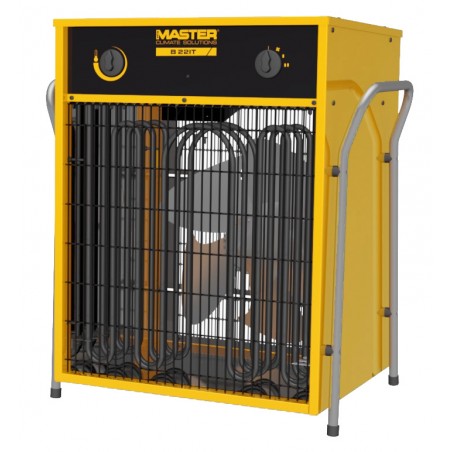

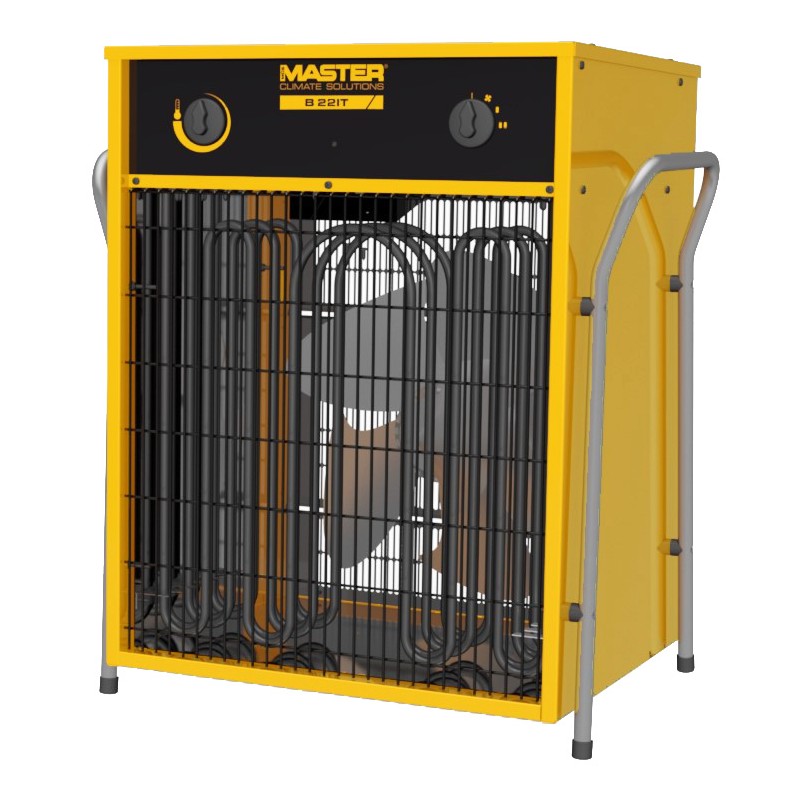

MASTER B 22 EPB electric heater
Efficiency [kW]: 11 / 22
Air flow [m3/h]: 2200
Rated current [A]: 3 x 32
Power [V/Hz]: 400/50
Net weight [kg]: 20
Model description
- Built-in room thermostat
- No oxygen consumption
- No fumes, no odours, no humidity
- Summer-Winter switch for ventilation only
- Low noise
- Automatic reset
- Motor with thermal protection
- Stainless steel heating elements
- Overheat thermostat
- Adjustable heat
- Strong and long lasting steel construction
Accesories
5 m - 4511.033, 10 m - 4511.034
Data sheet
- Efficiency [kW]
- 11 / 22
- Efficiency [Btu/h]
- 37530 / 75100
- Efficiency [Kcal/h]
- 9460 / 18900
- Air flow [m<sup>3</sup>/h]
- 2400
- Rated current [A]
- 3 x 32
- Power [V/Hz]
- 400/50
- Switch position 1
- OFF
- Switch position 2
- wentylator
- Switch position 3
- 11,0kW
- Switch position 4
- 22,0kW
- Thermostat control
- standard
- Temperature limited [°C]
- 5-35
- Net weight [kg]
- 20
- Dimensions - L. X width. X height. [mm]
- 350x540x590
- Ochrona
- IP24
Specific References
Download
Schemat nagrzewnicy B 22 EPA
Download (1.31MB)Schemat nagrzewnicy B 22 EPB
Download (187.09KB)Instrukcja obsługi nagrzewnic el
