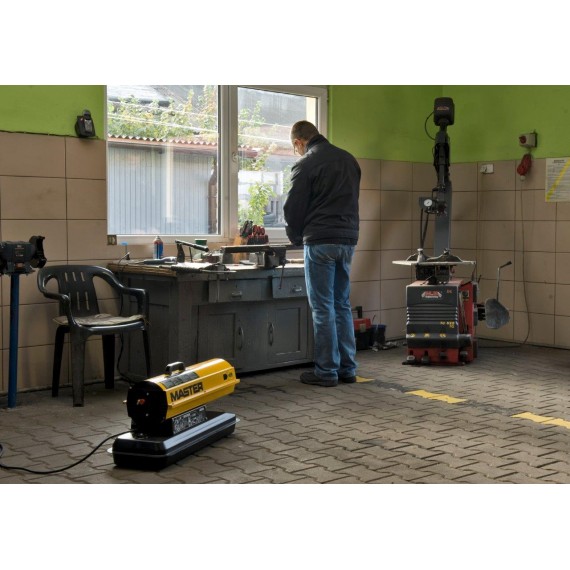

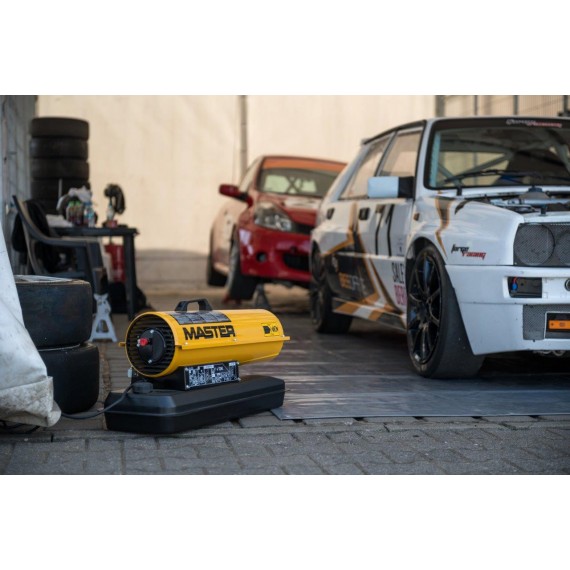

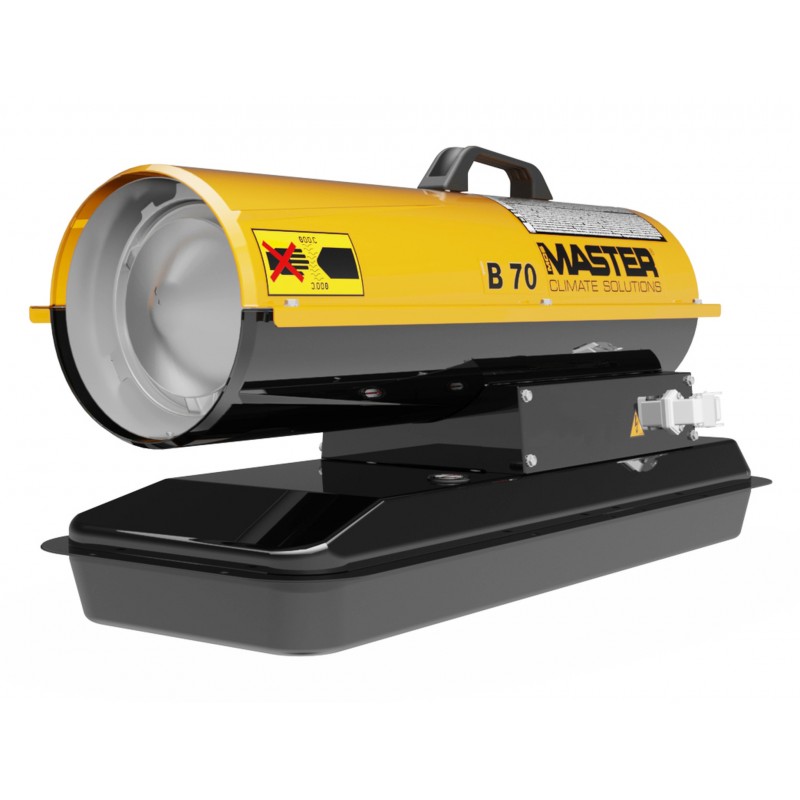

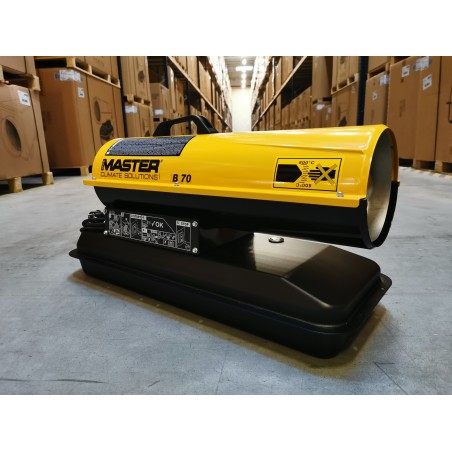

MASTER B 70 CED direct oil heater

MASTER B 70CED

Efficiency [kW]: 20
Air flow [m3/h]: 400
Fuel consumption [kg/h]: 1,7
Ignition: świeca
Tank capacity [l]: 19
Net weight [kg]: 17

1,939.00 zł
Tax included
Quantity

MASTER B 70CED
MASTER
View all products of MASTER

Model description

  • High air displacement
  • Possible connection to an optional room thermostat
  • Two oil filters: oil tank filter and suction filter
  • Thermally protected motor
  • Electronic flame control with photocell
  • Stainless steel combustion chamber
  • Oil tank with level indicator
  • Easy to move
  • Easy maintenance
  • Strong and long lasting construction

Accesories

Trolley - 4103.925

Room thermostat TH 5 with cable
3 m - 4150.105, 10 m - 4161.967
range: 0-36°C, accuracy: Âą 1,5°C

Data sheet

Fuel type
olej napędowy / olej opałowy
Efficiency [kW]
20
Efficiency [Btu/h]
68300
Efficiency [Kcal/h]
17200
Air flow [m<sup>3</sup>/h]
400
Fuel consumption [kg/h]
1,9
Rated current [A]
0,8
Power [V/Hz]
220-240/50-60
Ignition
elektroda
Tank capacity [l]
19
Thermostat control
opcjonalna TH5 lub THD
Net weight [kg]
15
Gross weight [kg]
18
Czas pracy na pełnym zbiorniku [h]
10
Ochrona
IP41

Specific References

Download

Schemat nagrzewnicy B 35, 70, 10

Download (702.72KB)

Schemat nagrzewnicy B 70 CED mod

Download (273.18KB)

Schemat B 70 CED model 2011

Download (357.8KB)

Schemat B 70 CED model 2012

Download (1.74MB)

Schemat B 70 CED model 2013

Download (1.85MB)
