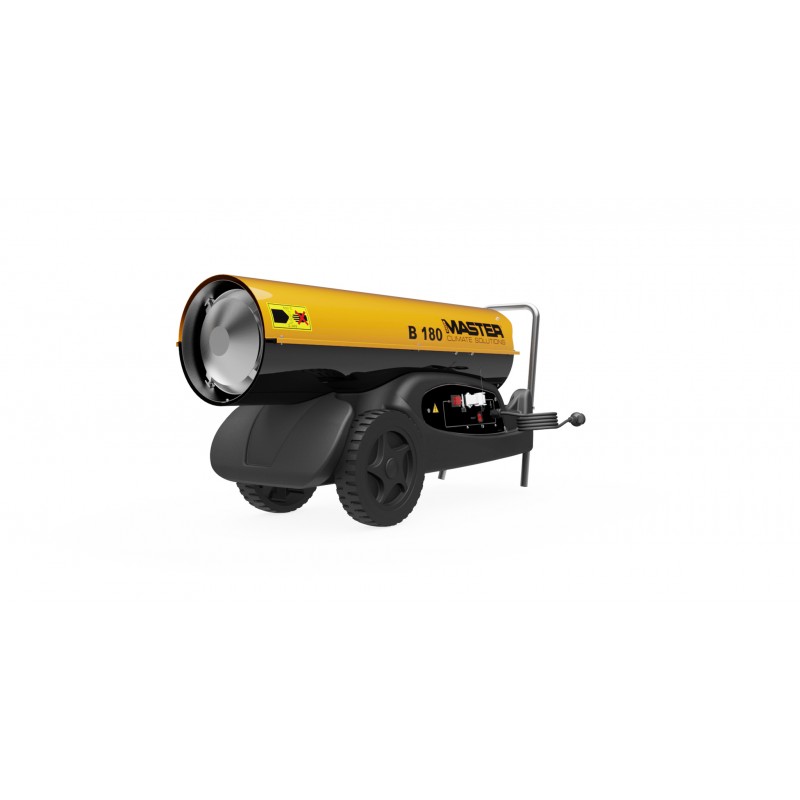

MASTER B 180 direct oil heater
  • MASTER B 180 direct oil heater
  • MASTER B 180 direct oil heater

MASTER B 180 direct oil heater

Master B 180

Efficiency [kW]: 48
Air flow [m3/h]: 1550
Fuel consumption [kg/h]: 3,8
Tank capacity [l]: 36
Thermostat control: możliwa - TH 5
Net weight [kg]: 38

4,160.00 zł
Tax included
Quantity

Master B 180
MASTER
View all products of MASTER

Model description

  • Overheat thermostat
  • High quality fuel pump
  • Post-ventilation thermostat
  • Transparent external suction filter
  • High air displacement
  • Possible connection to an optional room thermostat
  • Two oil filters: oil pump filter and suction filter
  • Thermally protected motor
  • Electronic flame control with photocell
  • Stainless steel combustion chamber
  • Oil tank with level indicator
  • Trolley included
  • Easy maintenance with external pump
  • Strong and long lasting construction



Additional information:

  •      Fuel Pump: Danfoss BFA from the filter elements
  •      flame control: BRAHMA
  •      Ignition system: double electrode
  •      Combustion chamber: the inner chamber made of stainless steel AISI430
  •      Combustion chamber: materiał- wire kominowy- lower aluminum plate: AISI430
  •      The tank is made of polyethylene
  •      complements high-pressure heaters
  •      more resistant to moisture
  •      designed for severe working conditions

Accesories

Room thermostat TH 5 with cable
3 m - 4150.105, 10 m - 4161.967
range: 0-36°C, accuracy: Âą 1,5°C



Data sheet

Fuel type
olej napędowy / olej opałowy
Efficiency [kW]
48
Efficiency [Btu/h]
165000
Efficiency [Kcal/h]
41200
Air flow [m<sup>3</sup>/h]
1550
Fuel consumption [kg/h]
4,5
Rated current [A]
1,5
Power [V/Hz]
220-230/50-60
Ignition
elektrody
Tank capacity [l]
36
Thermostat control
możliwa - TH 5
Net weight [kg]
38
Gross weight [kg]
42
Dimensions - L. X width. X height. [mm]
1200x400x530
Czas pracy na pełnym zbiorniku [h]
8
Ochrona
IP 44

Specific References

Download

Schemat B 180 model 2010

Download (289.8KB)

Schemat B 180 model 2011

Download (416.17KB)

Schemat B 180 model 2012

Download (1.86MB)

Schemat B 180 model 2013

Download (2.04MB)
