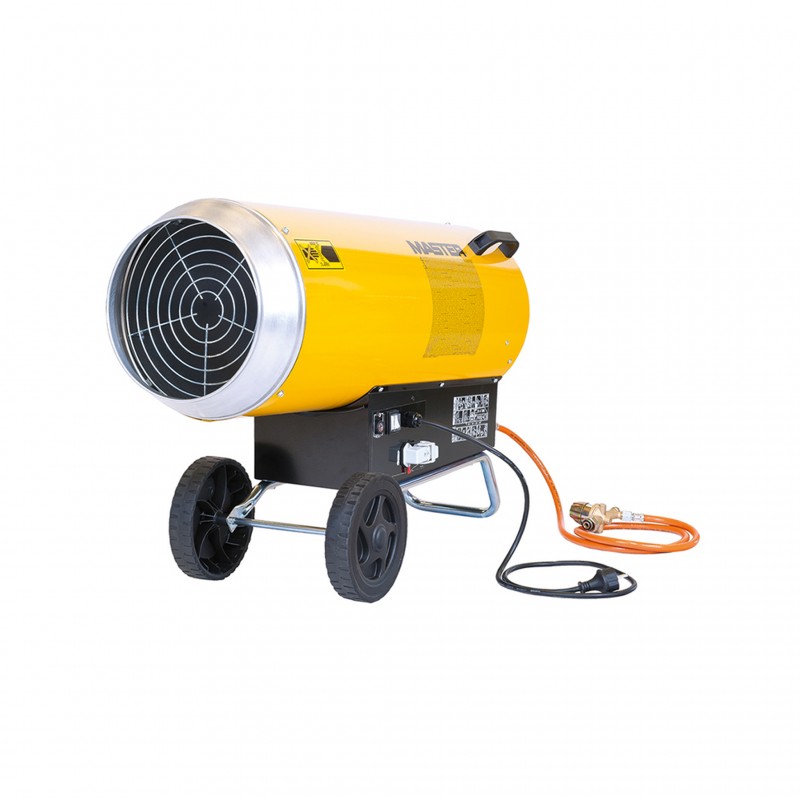

MASTER BLP 103 ET gas heater

MASTER BLP 103ET

Efficiency [kW]: 57 - 103
Air flow [m3/h]: 3260
Fuel consumption [kg/h]: 6,66
Ignition: ELEKTRONICZNY
Thermostat control: możliwa - TH 5
Net weight [kg]: 35

4,049.00 zł
Tax included
Quantity

MASTER BLP 103ET
MASTER
View all products of MASTER

Model description

  • Electronic ignition
  • Possible connection to an optional room thermostat
  • Double electrovalve
  • Air-temp flow sensor
  • Regulator includes safety valve
  • Regulator and gas hose included
  • Motor with thermal protection
  • Overheat thermostat
  • Adjustable heat
  • Strong and long lasting construction
  • Easy maintenance
  • Trolley included

Accesories:

Kit for connecting the gas cylinders
Connector gas cylinder - 4515.902



Gas pipe thread (0,5 m) - 4515.901

Room thermostat TH 5 with cable
3 m - 4150.105, 10 m - 4161.967
range: 0-36°C, accuracy: ± 1,5°C

Data sheet

Efficiency [kW]
57 - 103
Efficiency [Btu/h]
194500 - 351700
Efficiency [Kcal/h]
49000 - 88600
Air flow [m<sup>3</sup>/h]
3260
Fuel consumption [kg/h]
6,66
Rated current [A]
1,0
Power [V/Hz]
220-240/50
Ignition
ELEKTRONICZNY
Thermostat control
możliwa - TH 5
Net weight [kg]
22,3
Gross weight [kg]
27,5
Dimensions - L. X width. X height. [mm]
895x324x624

Specific References

Download

Instrukcja obsługi nagrzewnicy g

Download (283.65KB)

Instrukcja obsługi nagrzewnicy g

Download (645.35KB)

Schemat nagrzewnicy BLP 100 E ed

Download (282.03KB)

Schemat nagrzewnicy BLP 103 E

Download (83.09KB)
