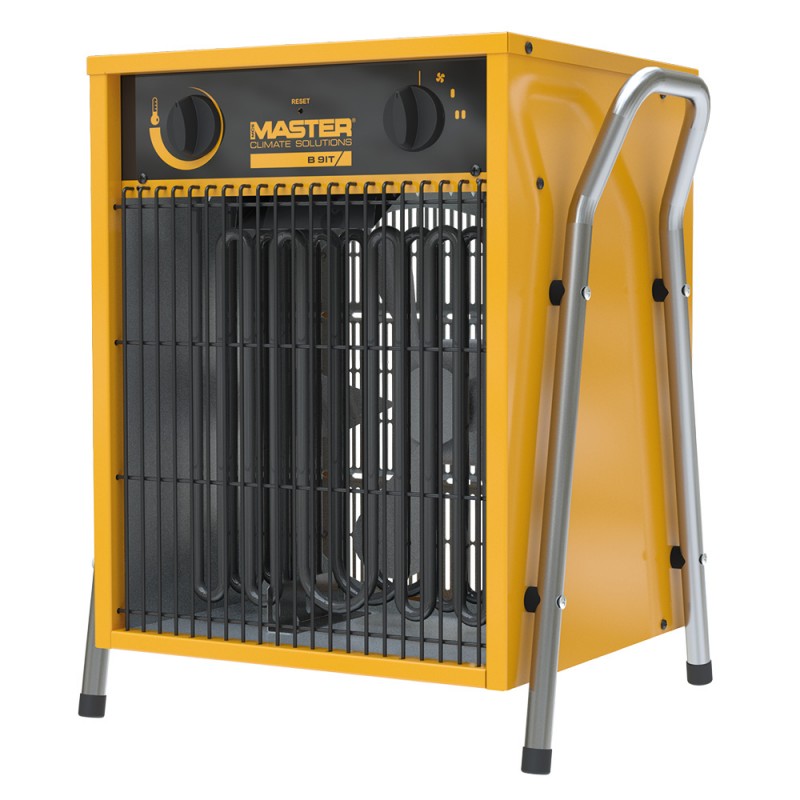

MASTER B 9 EPB electric heater

MASTER B 9IT

Efficiency [kW]: 4,5 / 9,0
Air flow [m3/h]: 800
Rated current [A]: 3 x 13
Power [V/Hz]: 400/50
Net weight [kg]: 13

839.00 zł
Tax included
Quantity

MASTER B 9IT
MASTER
View all products of MASTER

Model description

  • Built-in room thermostat
  • No oxygen consumption
  • No fumes, no odours, no humidity
  • Summer-Winter switch for ventilation only
  • Low noise
  • Motor with thermal protection
  • Stainless steel heating elements
  • Overheat thermostat
  • Adjustable heat
  • Strong and long lasting steel construction

Accesories

Extension cord
5 m - 4511.031, 10 m - 4511.032

Data sheet

Efficiency [kW]
4,5 / 9,0
Efficiency [Btu/h]
15350 / 30700
Efficiency [Kcal/h]
3870 / 7740
Air flow [m<sup>3</sup>/h]
800
Rated current [A]
3 x 13
Power [V/Hz]
400/50
Switch position 1
OFF
Switch position 2
wentylator
Switch position 3
4,5kW
Switch position 4
9,0kW
Thermostat control
standard
Temperature limited [°C]
5-35
Protection
IPX4
Net weight [kg]
9,3
Gross weight [kg]
10,8
Dimensions - L. X width. X height. [mm]
355x450x490
Ochrona
IP 24

Specific References

Download

Schemat nagrzewnicy B 9 EPA

Download (1.21MB)

Schemat nagrzewnicy B 9 EPB

Download (444.09KB)

Instrukcja obsługi nagrzewnic el

Download (822.24KB)
