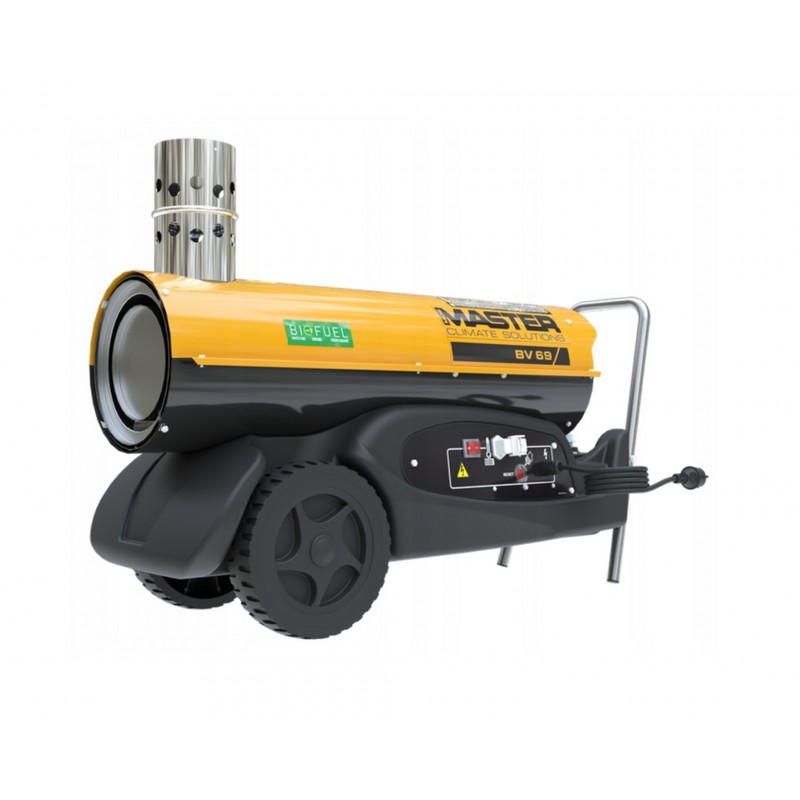

Air heater Master BV 69

MASTER BV 69
Efficiency [kW]: 20
Air flow [m3/h]: 1550
Fuel consumption [kg/h]: 1,67
Diameter of the chimney connection [mm]: 120
Net weight [kg]: 52
4,170.00 zł
Tax included
Quantity

MASTER BV 69
MASTER
View all products of MASTER

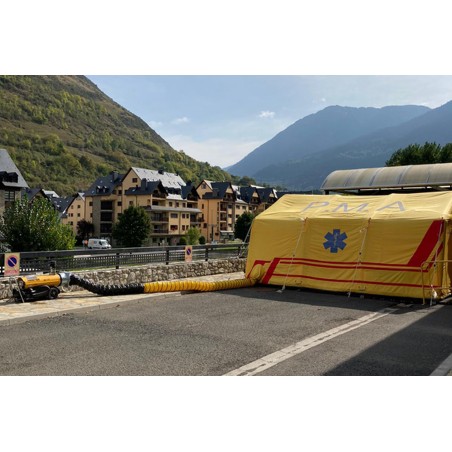

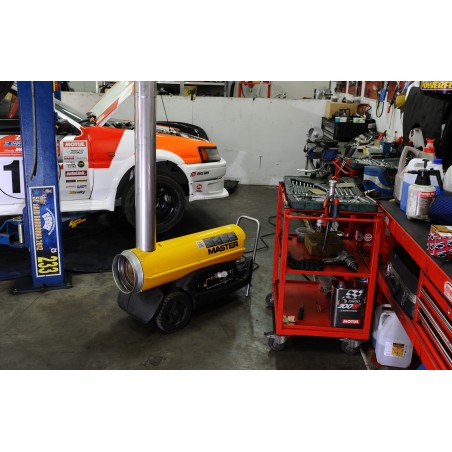

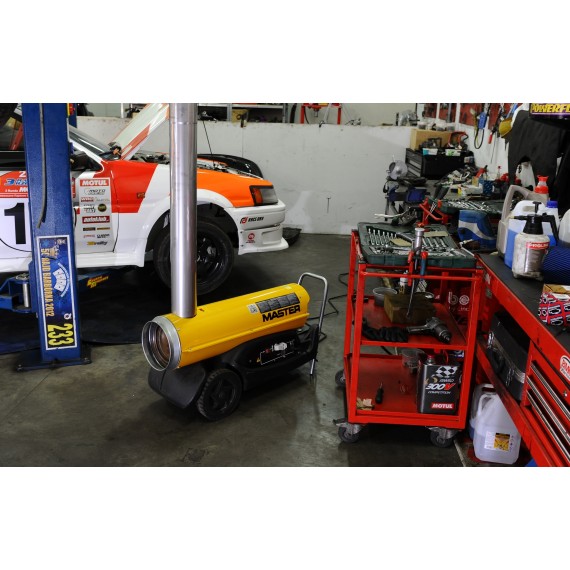

Oil heater with flue MASTER BV 69 E is a portable, professional, fully automatic oil heater. The combustion chamber is made of stainless steel. Heater case is isolated, so that does not heat up during use. The heaters are equipped with wheels, coasters and handrails to facilitate their transport. All devices have a built-in oil tank. It is possible to connect the room thermostat. Power for the fan and automation - 230V.  Heaters are ideal for heating production halls, warehouses, livestock buildings, construction in progress, wash stations, diagnostic and wulkanizacjach, tents and workshops. Exchangers heaters have combustion chamber and a fireplace that allows smoke outlet on the outside, so warm air is put into the room is clean.

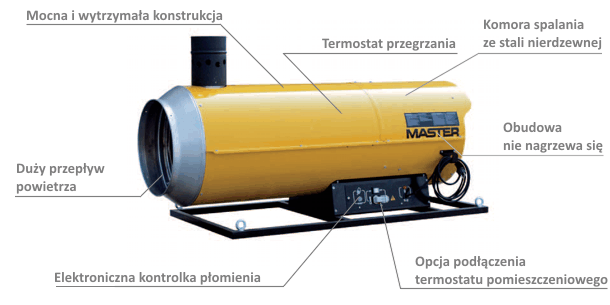

Advantages heater:


  •      Electronic flame control
  •      Overheat thermostat
  •      Ability to connect room thermostat
  •      Combustion chamber is made of stainless steel
  •      Durable exterior finish
  •      Standard oil tank
  •      Set of of wheels in the standard
  •      Strong and durable construction
  •      Housing does not heat up
  •      Easy to use and maintain
  •      High airflow


Differences MASTER BV 69 in comparison to the MASTER BV 77:

     model BV69- inability to connect either hot air
     model BV69- inability to connect the thermostat
     model BV69- lack of fuel quantity indicator

Data sheet

Fuel type
olej napędowy / olej opałowy
Efficiency [kW]
21
Efficiency [Btu/h]
71700
Efficiency [Kcal/h]
18100
Air flow [m<sup>3</sup>/h]
1550
Fuel consumption [kg/h]
2,0
Rated current [A]
1,5
Power [V/Hz]
220-240/50
Tank capacity [l]
36
Thermostat control
możliwa - TH 5
Diameter of the chimney connection [mm]
120
Net weight [kg]
33
Gross weight [kg]
37
Blast opening [mm]
310
Dimensions - L. X width. X height. [mm]
1130x380x660

Specific References

Download

Schemat BV 69 model 2010

Download (291.83KB)

Schemat BV 69 model 2011

Download (451.15KB)

Sczemat BV 69 model 2012

Download (1.87MB)

Schemat BV 69 model 2012

Download (2.03MB)

Schemat BV 69

Download (509.1KB)
